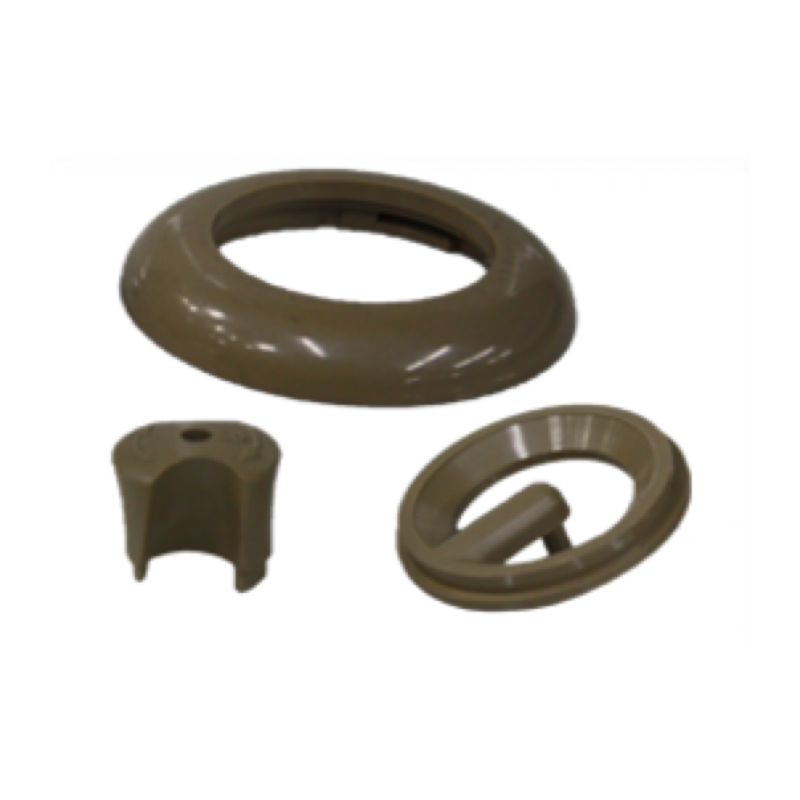

Taupe precision miniJet kit for Hot Spring 2004-2005 spas.
Mini jets are a small softer feeling jet. They are designed to target key muscle groups in the back and shoulders.
The mini jets are located in a jet cluster of ten or above the Moto-Massage. The intensity of the mini jets is varied by the amount of air drawn into the jets. The air control valve controls airflow to all of the jets.
The mini jets consist of a face, retainer, eyeball/rotary, ring seat, wallfitting, o-ring, and body.
| Removal |
- Open or remove the spa cover.
- Remove the mini-jet face by turning the jet face counterclockwise.
- Remove the retainer.
- Remove the eyeball or rotary.
- Remove the ring seat.
- Remove the wallfitting by turing it counterclockwise.
- Remove the o-ring.
- To reinstall the mini-jet, reverse steps 1 to 7.
|
Specifications
|
Â
| Item |
|
Part # |
| 1 |
KIt Mini Jet Body |
73272 |
| 2a |
Kit Direct Mini Jet Assy C.Gry |
73290 |
| 2b |
Kit Direct Mini Jet Assy W.Gry |
73288 |
| 2c |
Kit Direct Mini Jet Assy Taupe |
73292 |
| 3a |
Kit Rotary Mini Jet Assy C.Gry |
73289 |
| 3b |
Kit Rotary Mini Jet Assy W.Gry |
73287 |
| 3c |
Kit Rotary Mini Jet Assy Taupe |
73291 |
|
