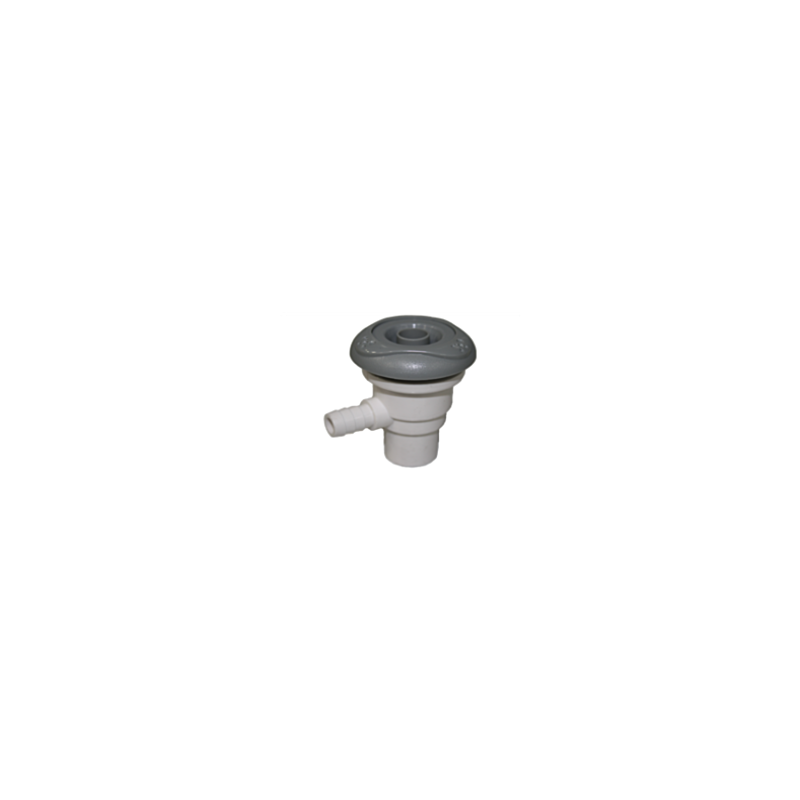

72551 Euro Jet Directional

The jet is a powerful jet that combines water pressure and air to provide a substantial stream. The jet is located in the various areas of the spa. Check the owners manual for exact locations..

Before starting the replacement instructions have the spa drained with the foam dug out exposing the rear wall fitting retaining ring that holds the jet in place.

• Turn the retaining ring counterclockwise to remove.
• Remove the nozzle and seat ring.
• Remove the front wallfitting.
• Access the rear portion of the shell. NOTE: Removal of wood and foam may still be required.
• Remove the rear wallfitting assembly from the spa’s plumbing and once separated pull front wall fitting through the water side.
• To replace the jetstream, reverse the steps.
• When replacing the jet examine the underside and take note of where the notches will meet the tabs on the grill face.
• To replace the insert, reverse the steps.

72551 Euro Jet Directional is for the following models:
