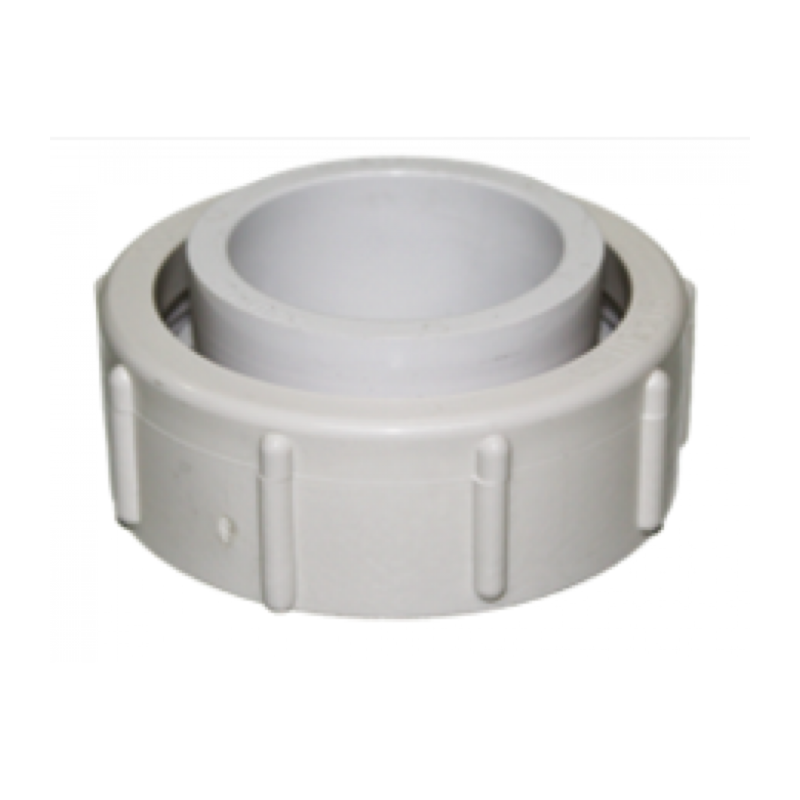

Compression Fitting
This part is a replacement PVC compression fitting for select hot tubs and Endless Pool models. Pool and spa 2″ & 1-1/2″ coupling, allowing the best fitment for your plumbing system.
The O-ring should be used to secure the fitment. Compatible with 1994 to current Hot Spring Highlife, Wavemaster, Limelight, Solana, Tiger River and Endless Pool models.
*Check specs section for full list of compatible models and years.
Specifications
| Item |
Decsription |
Part # |
| 1 |
JET PUMP, 1.65HP 1SP DUAL 60HZ |
71699 |
| 2 |
GROMMET, JET PUMP BASE 97-C |
72349 |
| 3 |
WASHER FLT 5/16X3/4 SS |
30413 |
| 4 |
SCW 1/4-20X1-1/2 MS PH PLP SS |
30018 |
| 5 |
POWER CORD |
N/A |
| 6 |
EXHAUST HOSE, JET PUMP 01-C |
72344 |
| 7a |
UNION, PUMP |
1119401 |
| 7b |
2″ SOC.90 DEG SWEEP PUMP UNION |
301488 |
| 7c |
429-020 CPLG 2IN SLXSL |
30665 |
| 7d |
O-RING, COMPRESSION FITTING |
34447 |
| 7e |
HOSE, PVC FLEX 2″ X 36″ |
70308 |
| 7f |
FITTING COMPRESS 2 W/O-RING |
71036 |
| 7g |
FITTING COMPRESS 2X1.5 W/ORING |
71037 |
| 7h |
FITTING COMPRE 1.5W/O-RNG |
71038 |
| 7i |
SPLIT NUT, 2″ JET PUMP |
72072 |
| 8a |
SHAFT SEAL ASSEMBLY |
71447 |
| 8b |
SEAL, SHAFT LX JET PUMP #3536 |
77363 |
| 9a |
ADAPTER 1/2IN HOSE 0675-063 |
33732 |
| 9b |
ADAPTER ELL, 1/4-MIPT 1/2-BARB |
39438 |
| 10a |
WET END 1.65 HP 60HZ ST D |
72994 |
| 10b |
WET END 1.5/1.65 HP 60 HZ L-03 |
77711 |
| Item |
|
Wavemaster
7000
|
Wavemaster
9000
|
| 1A |
Motor 1 H.P |
N/A |
– |
| 1B |
Motor 2 H.P. |
– |
|
| 1C |
Motor 1993 Grandee ONLY |
– |
– |
| 2 |
Bolt Hex |
70395 |
70395 |
| 3 |
Washer Flat -3/8″ |
70396 |
70396 |
| 4A |
Base |
N/A |
N/A |
| 4B |
Base Jet Pump |
– |
– |
| 5 |
Seal Plate |
70399 |
70399 |
| 6 |
Shaft Seal |
70400 |
70400 |
| 7A |
Impellor 1 H.P. |
70401 |
– |
| 7B |
Impellor 2 H.P. |
– |
N/A |
| 8 |
Diffusor |
70408 |
70408 |
| 9 |
O-Ring |
70409 |
70409 |
| 10 |
Screw Diffuser |
70404 |
70404 |
| 11 |
O-Ring |
70405 |
70405 |
| 12 |
Nut |
N/A |
N/A |
| 13 |
Clamp |
70406 |
70406 |
| 14 |
Bolt Hex |
70394 |
70394 |
| 15 |
Cover |
70407 |
70407 |
| 16 |
Flange Suction |
70410 |
70410 |
| 17 |
Barbed Fitting |
32267 |
32267 |
| 18 |
Clamo 1/4″ |
31134 |
31134 |
| 19 |
Vinyl Yubing 1/4″ |
70318 |
70318 |
| 20 |
Bolt Hex |
70398 |
70398 |
| 21A |
Fitting w/ O-ring 2″ x 1-1/2″ |
71037 |
71037 |
| 21B |
Fitting w/O-Ring 2″ x 2″ |
71036 |
71036 |
| 22 |
PVC Flex Tubing 2″ |
70309 |
70309 |
| 23 |
Screw Im,pellor (Reverese Thread) |
70403 |
70403 |
| 24 |
O-Ring |
34447 |
34447 |
| 25 |
Hose Jet Pump Duct |
N/A |
N/A |
| 26 |
Shroud |
N/A |
N/A |
| 27 |
TailPiece Inlet |
70411 |
70411 |
| * |
Pump Complete |
– |
34462 |
| Item |
|
Part # |
| 1 |
JET PUMP, 2.5HP 1SP 230V 60HZ |
72196 |
| 2A |
WET END 2.5 HP 60HZ ST D |
72996 |
| 2B |
WET END 2.5 HP 60 HZ, L-03 |
77713 |
| 3 |
DRAIN FITTING, JET PUMP 1/4IN |
32267 |
| 4A |
UNION, PUMP |
1119401 |
| 4B |
2″ SOC.90 DEG SWEEP PUMP UNION |
301488 |
| 4C |
429-020 CPLG 2IN SLXSL |
30665 |
| 4D |
O-RING, COMPRESSION FITTING |
34447 |
| 4E |
HOSE, PVC FLEX 2″ X 36″ |
70308 |
| 4F |
ITTING COMPRESS 2 W/O-RING |
71036 |
| 4G |
FITTING COMPRESS 2X1.5 W/ORING |
71037 |
| 4H |
FITTING COMPRE 1.5W/O-RNG |
71038 |
| 4I |
SPLIT NUT, 2″ JET PUMP |
72072 |
| 5A |
SHAFT SEAL ASSEMBLY |
71447 |
| 5B |
SEAL, SHAFT LX JET PUMP #3536 |
77363 |
| 6 |
GROMMET, JET PUMP BASE 97-C |
72349 |
| 7 |
WASHER FLT 5/16X3/4 SS |
30413 |
| 8 |
SCW 1/4-20X1-1/2 MS PH PLP SS |
30018 |
| 9 |
KIT, PUMP CORD 14/3 1SPD STRS |
72462 |
| 10 |
EXHAUST HOSE, JET PUMP 01-C |
72344
|
|
