Update: Discontinued

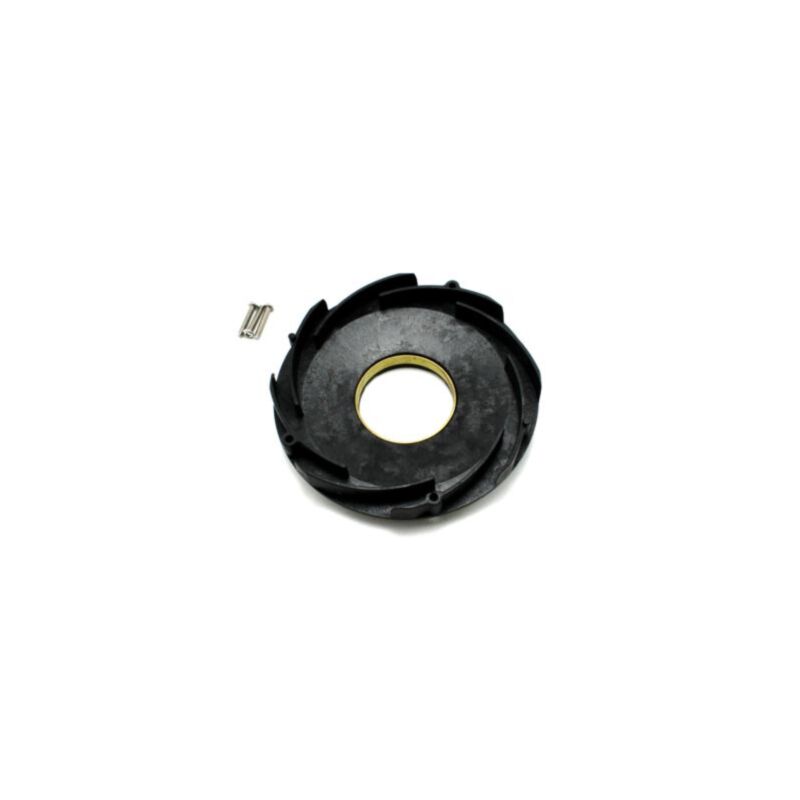

Diffuser
This part is a replacement diffuser for select hot tubs. Designed for the Wavemaster 7000 jet pump.
Made in black and comes with screws to secure it properly. Compatible with 1993 to 1996 Hot Spring Highlife spa models.
*Check specs section for full list of compatible models and years.
Specifications
|
| Item |
|
Wavemaster
7000
|
Wavemaster
9000
|
| 1A |
Motor 1 H.P |
N/A |
– |
| 1B |
Motor 2 H.P. |
– |
|
| 1C |
Motor 1993 Grandee ONLY |
– |
– |
| 2 |
Bolt Hex |
70395 |
70395 |
| 3 |
Washer Flat -3/8″ |
70396 |
70396 |
| 4A |
Base |
N/A |
N/A |
| 4B |
Base Jet Pump |
– |
– |
| 5 |
Seal Plate |
70399 |
70399 |
| 6 |
Shaft Seal |
70400 |
70400 |
| 7A |
Impellor 1 H.P. |
70401 |
– |
| 7B |
Impellor 2 H.P. |
– |
N/A |
| 8 |
Diffusor |
70408 |
70408 |
| 9 |
O-Ring |
70409 |
70409 |
| 10 |
Screw Diffuser |
70404 |
70404 |
| 11 |
O-Ring |
70405 |
70405 |
| 12 |
Nut |
N/A |
N/A |
| 13 |
Clamp |
70406 |
70406 |
| 14 |
Bolt Hex |
70394 |
70394 |
| 15 |
Cover |
70407 |
70407 |
| 16 |
Flange Suction |
70410 |
70410 |
| 17 |
Barbed Fitting |
32267 |
32267 |
| 18 |
Clamo 1/4″ |
31134 |
31134 |
| 19 |
Vinyl Yubing 1/4″ |
70318 |
70318 |
| 20 |
Bolt Hex |
70398 |
70398 |
| 21A |
Fitting w/ O-ring 2″ x 1-1/2″ |
71037 |
71037 |
| 21B |
Fitting w/O-Ring 2″ x 2″ |
71036 |
71036 |
| 22 |
PVC Flex Tubing 2″ |
70309 |
70309 |
| 23 |
Screw Im,pellor (Reverese Thread) |
70403 |
70403 |
| 24 |
O-Ring |
34447 |
34447 |
| 25 |
Hose Jet Pump Duct |
N/A |
N/A |
| 26 |
Shroud |
N/A |
N/A |
| 27 |
TailPiece Inlet |
70411 |
70411 |
| * |
Pump Complete |
– |
34462 |
|
